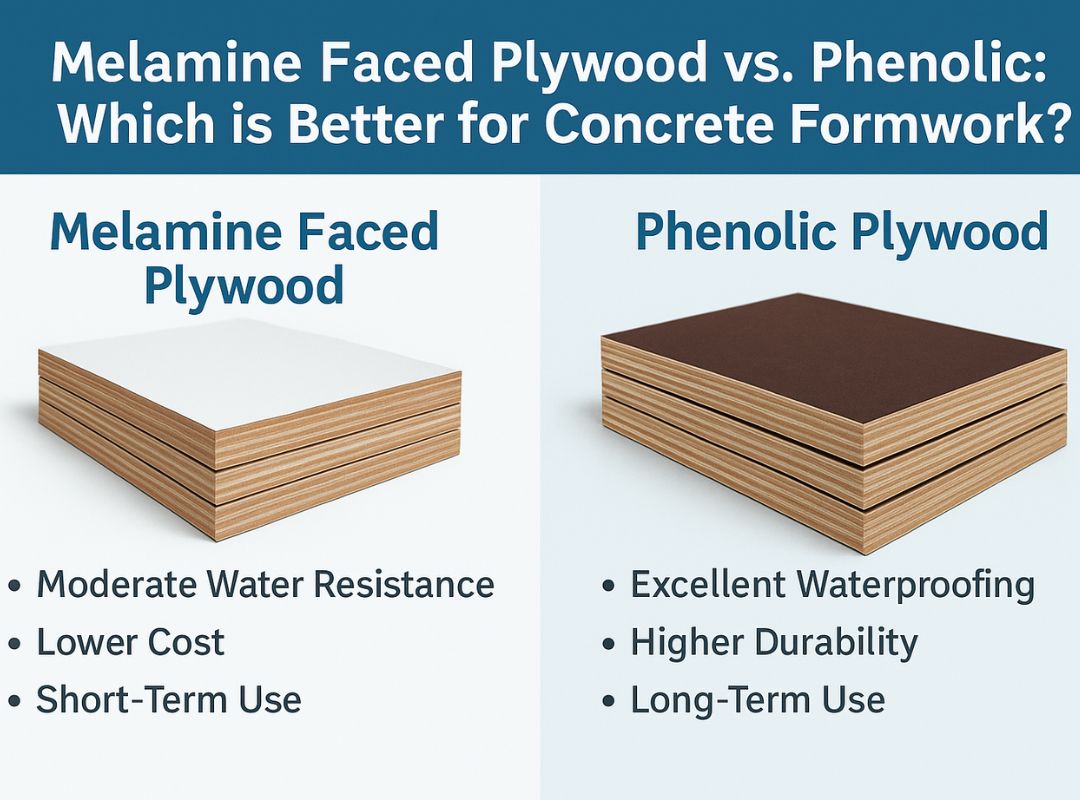

Melamine vs. Phenolic Film Faced Plywood: The Ultimate Guide for Concrete Formwork

Choosing the Right Plywood for Formwork

When working on concrete construction projects, selecting the proper formwork material is crucial for both quality and cost-efficiency. Among the various options available, melamine-faced and phenolic-faced plywood stand out as popular choices. While they may appear similar at first glance, their performance characteristics differ significantly.

This comprehensive guide examines both materials in detail, helping you make an informed decision based on your project's specific requirements. We'll compare their durability, water resistance, cost-effectiveness, and ideal applications through a balanced mix of detailed explanations and clear bullet-point comparisons.

1. Material Composition and Key Characteristics

Melamine - Film Faced Plywood

Melamine- Film Faced plywood features a surface coating made from melamine-formaldehyde resin. This creates a hard, durable finish that offers several advantages:

• Smooth surface for clean concrete finishes
• Good scratch resistance
• Moderate water resistance
• Cost-effective for short-term projects

However, its limitations become apparent in demanding conditions. The resin's molecular structure, while rigid, lacks the flexibility needed for prolonged exposure to moisture. When used in outdoor formwork or high-humidity environments, melamine-faced plywood may begin to delaminate after just 3-5 uses.

Phenolic - Film Faced Plywood

Phenolic- Film faced plywood utilizes a phenol-formaldehyde resin coating that delivers superior performance:

• Exceptional waterproofing capabilities
• Enhanced durability for 20-50+ concrete pours
• Excellent chemical resistance against concrete alkalinity
• Maintains surface quality through multiple uses

The cross-linked polymer structure of phenolic resin creates a moisture barrier that withstands even the harshest job site conditions. This makes it particularly valuable for large-scale commercial projects and construction in tropical climates.

2. Water Resistance: A Critical Performance Factor

Water exposure is one of the biggest challenges for concrete formwork plywood. The choice between melamine and phenolic coatings significantly impacts how well the material holds up under wet conditions.

Key differences in water resistance:

• Melamine- Film faced plywood:
• Shows moderate swelling after 24 hours of water exposure
• Struggles in prolonged wet conditions, often delaminating after 3-5 uses
• Best suited for dry or controlled environments (indoor use, minimal rain)
• Phenolic - Film faced plywood:
• Demonstrates minimal swelling even after extended water immersion
• Passes stringent EN 314-2 boil tests, confirming superior waterproofing
• Maintains integrity in high-humidity (90-95% RH) and marine environments

These test results explain why large-scale projects in rainy climates or with repeated concrete pours typically prefer phenolic-faced plywood. Its ability to withstand moisture without degrading ensures consistent performance and reduces replacement costs.

3. Durability and Reusability: Long-Term Cost Considerations

When evaluating plywood for formwork, durability directly affects project economics. While initial costs matter, the number of reuses often determines the true value. The number of times plywood can be reused directly impacts project costs.

Practical example: For a project requiring 100 formwork uses:

• Melamine option → Needs 10-20 sheets (due to faster degradation)
• Phenolic option → Only 3-4 sheets required (with proper rotation)

This stark difference in material consumption makes phenolic- Film faced plywood the smarter choice for large or repetitive projects, despite its higher upfront price. The reduced handling and waste disposal further enhance its economic advantages.

How Resin Content Affects Film Faced Plywood Performance

The percentage of melamine or phenolic resin directly determines quality and lifespan. Here's what professionals need to know:

Critical Findings:

1. Sweet Spot for Phenolic: 80-90% content delivers optimal balance of cost and performance
2. Melamine Limit: Never exceed 65% to avoid brittleness
3. Testing Matters: 10% variance in resin content can reduce lifespan by 30%

Pro Tip: Always specify resin percentages in purchase contracts - many "phenolic" products contain only 50-60% actual phenolic resin.

4. Industry Standards and Quality Assurance

Reputable manufacturers adhere to strict quality benchmarks. When sourcing plywood, verify compliance with:

• EN 314-2 for bond quality and water resistance
• BS 1088 for marine-grade applications
• CARB Phase 2 for formaldehyde emissions

Always request certified test reports and inspect samples before large purchases. Be wary of suppliers offering "phenolic-like" products that may contain melamine blends, as these compromise performance.

5. Conclusion: Making the Right Choice for Your Project

For contractors prioritizing long-term performance and cost efficiency, phenolic - Film faced plywood consistently delivers superior results. Its exceptional durability and water resistance justify the higher initial investment, particularly for large-scale or repetitive projects.

Melamine- Film faced plywood serves well for temporary applications where budget constraints exist, but requires more frequent replacement. By carefully matching material properties to project requirements, construction teams can optimize both performance and profitability.

Final Recommendations

• For heavy construction in challenging environments: Invest in phenolic-faced plywood
• For smaller, short-term projects: Melamine- Film faced plywood offers adequate performance
• Always verify certifications and test samples before purchasing
• Consider total cost of ownership, not just initial price

By understanding these key differences and applying this knowledge to your specific needs, you can ensure optimal results for your concrete formwork requirements while maintaining cost-effectiveness throughout your project's lifecycle.
