Packing Plywood Thickness Guide: How to Choose the Right Panel Thickness

Selecting the correct plywood thickness is one of the most critical decisions in industrial and export packaging. Inadequate thickness can lead to structural failure, cargo damage, and costly claims, while excessive thickness increases material costs, weight, and logistics expenses without delivering proportional benefits.

For packaging manufacturers, exporters, and logistics professionals in EU and US markets, understanding how plywood thickness interacts with load, span, and reuse cycles is essential. This guide explains how to choose the right packing plywood thickness based on application, cargo type, and performance requirements.

Why Thickness Matters in Packaging Applications

Plywood thickness directly influences the structural performance of packaging panels. Thicker panels distribute loads more effectively, resist bending over wider spans, and provide greater resistance to impact during handling and transportation.

In packaging applications, plywood does not function as a decorative material but as a structural safety component. The wrong thickness selection can compromise the integrity of export crates, pallets, and machinery enclosures, particularly during long-distance shipping or multimodal transport.

Relationship Between Load, Span, and Thickness

The required plywood thickness increases as either load weight or unsupported span increases. A thin panel may perform adequately over short distances or for lightweight goods, but the same panel may fail when used over wider spans or under concentrated loads.

For this reason, thickness selection should always consider not only the weight of the cargo but also how that weight is distributed across the panel and how the packaging will be handled during transit.

Common Packing Plywood Thickness Options (9mm–18mm)

In industrial packaging, plywood thickness typically ranges from 9mm to 18mm. Each thickness serves a distinct purpose depending on cargo characteristics and packaging design.

• 9mm–12mm plywood is commonly used for light-duty packaging, inner linings, and short-span panels where loads are limited.
• 15mm–18mm plywood is preferred for heavy-duty crates, machinery bases, and structural panels requiring high stiffness and impact resistance.

These thickness ranges allow packaging designers to tailor performance while controlling material and freight costs.

Typical Use Cases for Each Thickness

Thinner panels are often used in applications where the plywood acts as a protective enclosure rather than a load-bearing element. Thicker panels are selected when plywood must carry weight, resist stacking pressure, or support lifting points.

Understanding these distinctions helps avoid unnecessary over-engineering while maintaining adequate safety margins.

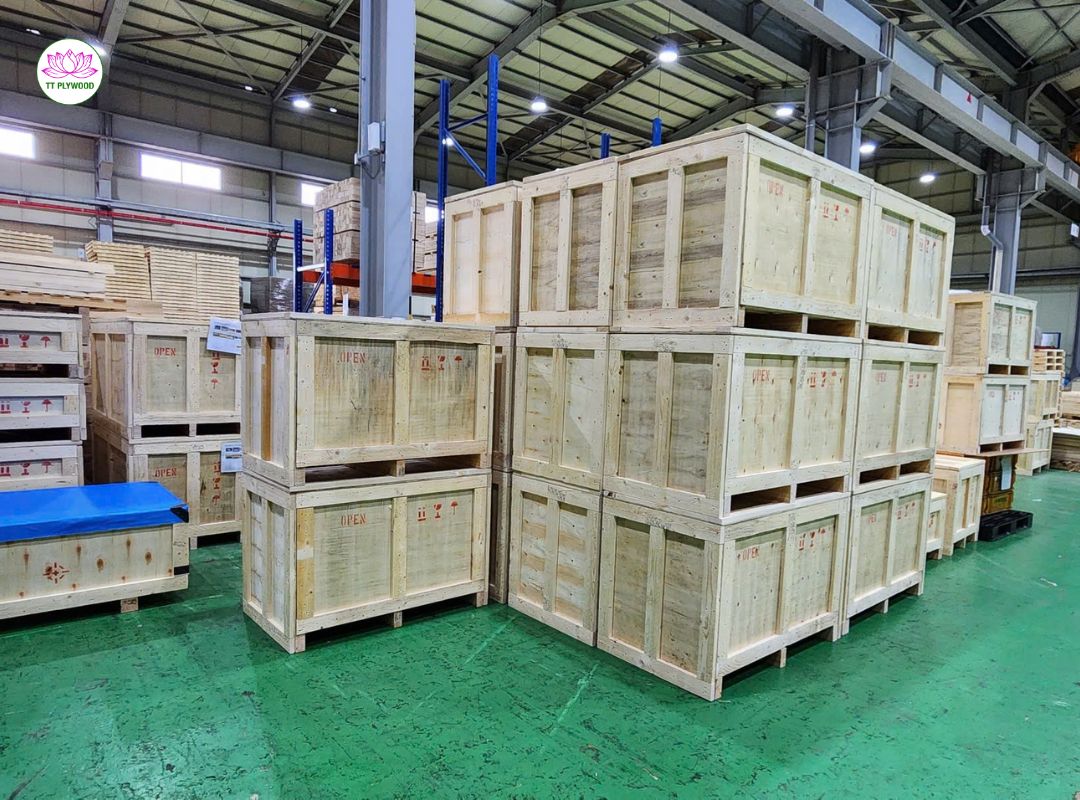

Thickness Selection for Export Crates

Export crates are exposed to dynamic loads during lifting, stacking, and transport. Thickness selection must account for both static cargo weight and external forces encountered during shipping.

For medium-weight export crates, plywood in the 12mm–15mm range is often sufficient when combined with proper framing. For heavy export crates or crates designed for stacking, 18mm plywood is frequently specified to ensure rigidity and resistance to deformation.

The choice should also consider whether the crate is designed for one-way shipment or multiple handling cycles, as reuse demands higher structural durability.

Thickness Selection for Machinery Packaging

Machinery packaging places higher demands on plywood panels due to concentrated loads, vibration, and sensitivity to movement. Panels used for machinery bases, side walls, and internal bracing must maintain structural integrity throughout the entire transport chain.

In most machinery packaging applications, plywood thickness of 15mm or greater is recommended. For heavy equipment or oversized machinery, 18mm plywood is commonly used to minimize deflection and reduce the risk of structural failure during transit.

Over-Specifying vs Under-Specifying Thickness

Choosing plywood thickness is a balance between safety and cost efficiency. Under-specifying thickness increases the risk of damage and liability, while over-specifying adds unnecessary material and logistics costs.

Balancing Safety and Cost

For packaging designers and exporters, the goal is not to select the thickest panel possible, but the most appropriate thickness for the intended application.

• Light goods vs heavy equipment: Lightweight goods can often be safely packed using thinner panels with proper framing, while heavy machinery requires thicker plywood to manage load concentration and vibration.
• One-way vs reusable packaging: One-way packaging can be optimized for minimum material use, whereas reusable packaging must withstand repeated handling and therefore requires greater thickness and durability.

A well-balanced thickness specification reduces total cost of ownership while maintaining compliance with transport safety requirements.

How to Choose the Right Packing Plywood Supplier

Beyond thickness, the quality of packing plywood depends on core construction, bonding strength, and manufacturing consistency. For export packaging, plywood must meet performance expectations reliably across large volumes.

If you are evaluating options, you may find it useful to review TT Plywood’s Packing Plywood solutions, where thickness options are matched with specific export and industrial packaging requirements.

Selecting the right plywood thickness is essential for safe, compliant, and cost-efficient packaging. If you need guidance on choosing packing plywood for export crates or machinery packaging, TT Plywood can support you with technical recommendations and export-ready solutions.

👉 Contact our team today to discuss your packaging requirements and request a customized quotation.

Frequently Asked Questions (FAQ)

What is the most common plywood thickness for export packaging?
Thicknesses between 12mm and 18mm are most commonly used, depending on cargo weight and crate design.

Is thicker plywood always safer for packaging?
Not necessarily. Proper framing and design can allow thinner panels to perform safely in certain applications. Thickness should be selected based on load, span, and handling conditions.

Can packing plywood be reused?
Yes. Reusable packaging typically requires thicker plywood and stronger bonding to withstand repeated handling and transport cycles.

Does plywood thickness affect shipping costs?
Yes. Thicker plywood increases weight and may affect freight costs, especially for air or weight-sensitive shipments.

References (Harvard Style)

Forest Products Laboratory (2021) Wood Handbook: Wood as an Engineering Material. Madison, WI: USDA Forest Service.

European Committee for Standardization (2012) EN 636: Plywood – Specifications. Brussels: CEN.

International Safe Transit Association (2020) Packaging Design Guidelines for Industrial Transport. ISTA.
