What Is Roof Sheathing?

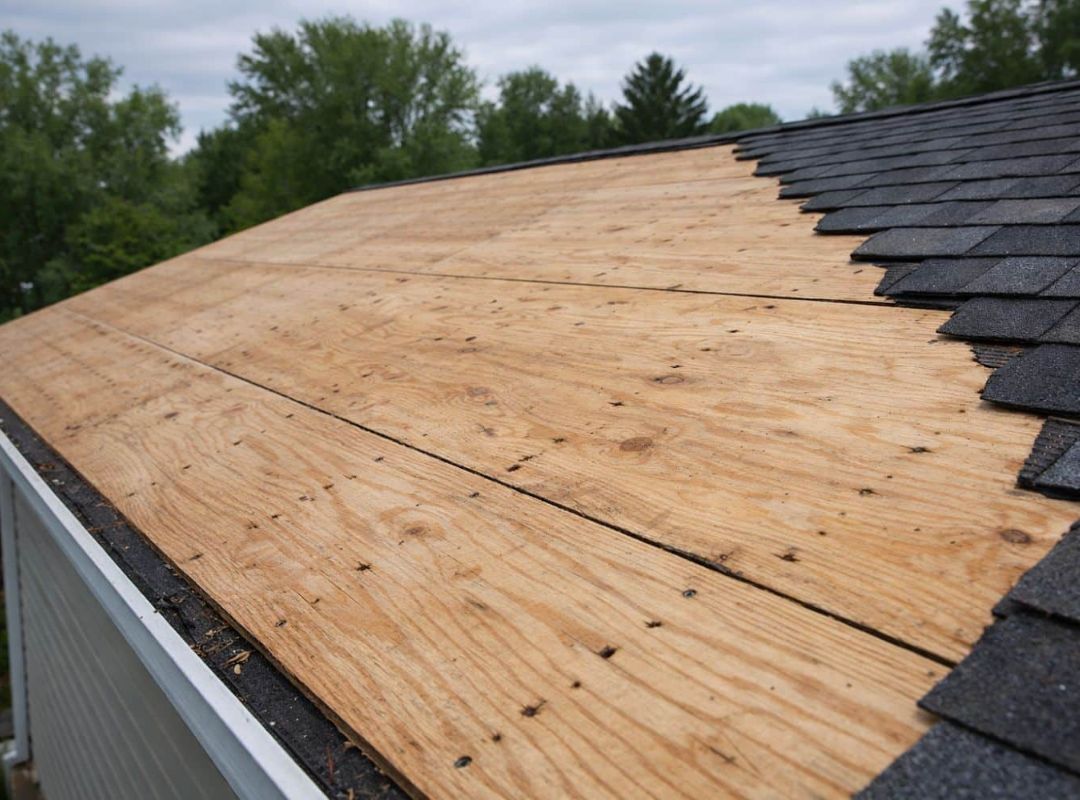

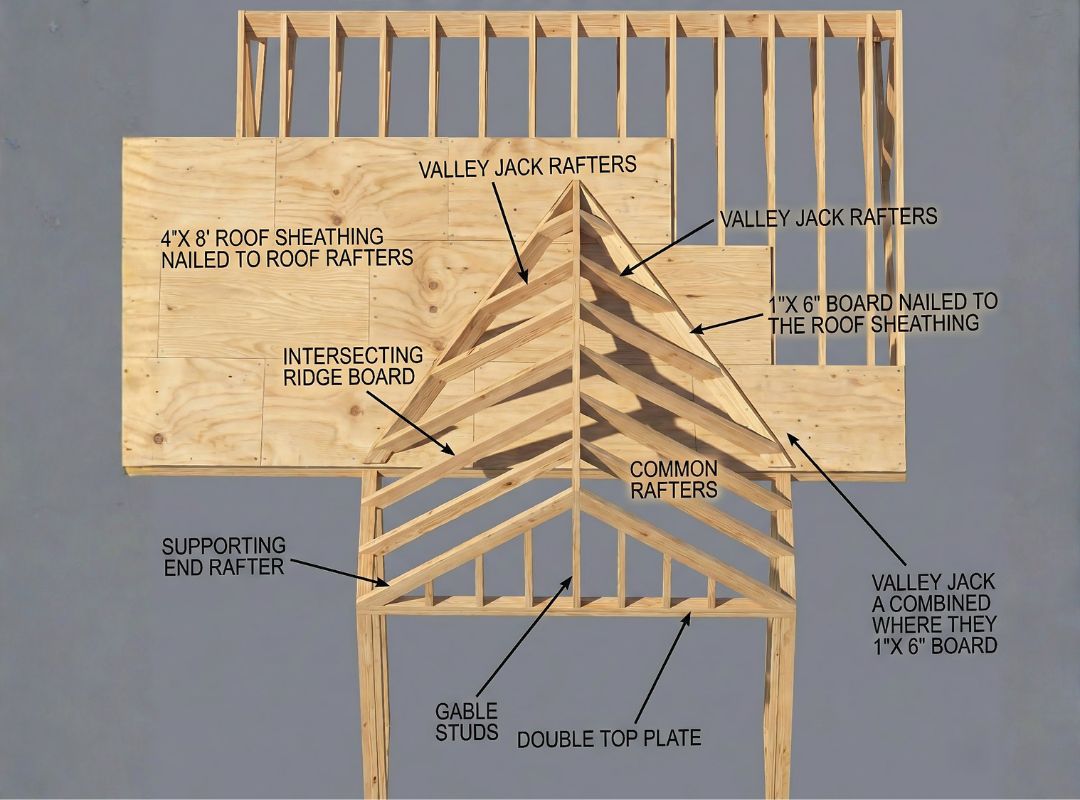

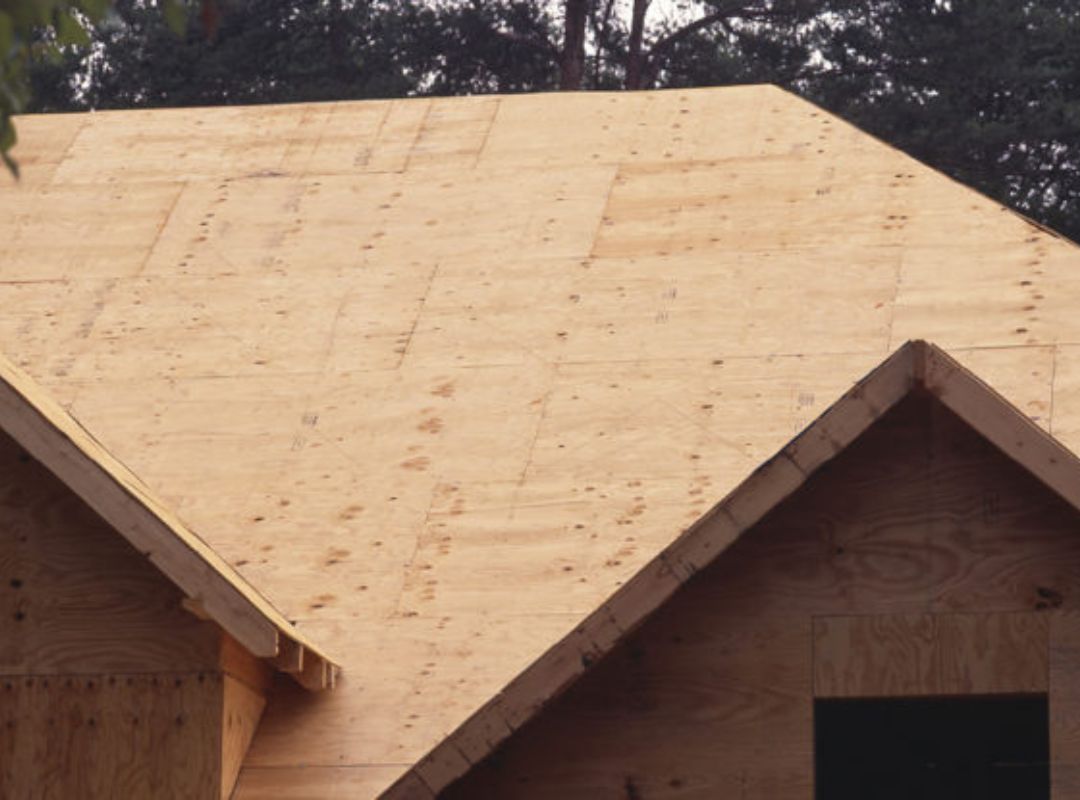

Roof sheathing is the layer of wood panels installed over roof rafters or trusses. It forms the structural base that supports roofing materials such as shingles, tiles, or metal sheets.

Without proper roof sheathing, roofing materials cannot be securely installed or evenly supported. The sheathing distributes loads across the roof structure and helps maintain the overall stability of the building envelope.

Plywood has long been a popular material for roof sheathing due to its engineered structure. Unlike solid wood boards, plywood consists of multiple veneer layers bonded together with alternating grain directions. This cross-laminated construction improves dimensional stability and reduces the likelihood of cracking or warping.

Because of these properties, plywood panels are widely used in structural applications such as flooring, wall sheathing, and roofing systems.

For builders interested in different engineered plywood materials used in construction and manufacturing, additional plywood products can be explored through the TT Plywood product portfolio, which includes a range of plywood panels designed for structural and industrial uses:
https://ttplywood.com/all-products

What Does “1/2 Inch Plywood” Mean?

In the construction industry, plywood thickness is often measured using the imperial system in inches. 1/2 inch plywood refers to panels with a nominal thickness of half an inch.

When converted to the metric system, 1/2 inch equals approximately 12.7 millimeters, although the actual manufactured thickness is typically slightly lower due to sanding and finishing processes.

In practical construction applications, this thickness is often referred to simply as 12 mm plywood in metric markets.

The thickness of the plywood panel directly affects its structural strength and load capacity. Thicker panels generally provide greater stiffness and resistance to bending, which is why builders must carefully evaluate whether a specific thickness is appropriate for roofing structures.

When Is 1/2 Plywood Suitable for Roof Sheathing?

Rafter Spacing Considerations

One of the most important factors influencing the suitability of 1/2 plywood for roofing is the spacing between roof rafters or trusses.

In many residential construction projects, rafters are spaced either 16 inches or 24 inches on center. When the spacing between rafters increases, the plywood panels must support larger spans and therefore require greater structural stiffness.

In situations where rafter spacing is relatively narrow, 1/2 inch plywood may provide adequate support. However, when rafters are spaced further apart, thicker panels such as 5/8 inch or 3/4 inch plywood are often recommended to improve structural performance.

Roofing Material Weight

Another key factor is the weight of the roofing material installed above the sheathing.

Lightweight roofing materials such as asphalt shingles typically impose less structural load compared with heavier materials like clay tiles or concrete roofing systems.

When the roof covering is relatively lightweight and the framing structure is properly designed, 1/2 inch plywood may perform adequately. However, heavier roofing materials usually require thicker structural panels to ensure long-term durability.

Building Codes and Local Regulations

Construction standards and building codes also influence plywood thickness requirements for roofing systems.

In many regions, building codes specify minimum sheathing thickness based on structural load requirements and rafter spacing.

For example, certain building codes require thicker panels when roof structures are expected to experience higher wind loads or heavy snow conditions.

Contractors should therefore always consult local building regulations before selecting plywood thickness for roofing projects.

Advantages of Using 1/2 Inch Plywood

Lightweight Material

One of the main benefits of 1/2 inch plywood is its relatively low weight compared with thicker panels. This makes it easier to transport, handle, and install on roofing structures.

For contractors working on residential projects, lighter panels can improve installation efficiency and reduce labor effort.

Cost Efficiency

Material cost is another factor influencing plywood selection. Thinner panels generally require less raw material and therefore tend to be more affordable than thicker alternatives.

In projects where structural requirements allow the use of 1/2 inch plywood, builders may benefit from lower material costs while still maintaining adequate performance.

Dimensional Stability

Plywood is an engineered wood product designed to minimize warping and splitting. Because the veneers are arranged with alternating grain directions, plywood panels maintain stable dimensions even when exposed to temperature and humidity changes.

This structural stability helps maintain a consistent roofing surface over time.

Limitations of 1/2 Plywood in Roofing

While 1/2 inch plywood can be suitable in certain situations, it is not always the ideal choice for roof sheathing.

Thinner panels may flex more easily under load, especially when rafter spacing is wide. Excessive deflection can lead to uneven roofing surfaces or structural stress over time.

Additionally, some roofing systems require stronger structural panels to support heavier materials or resist extreme weather conditions.

For this reason, many contractors prefer slightly thicker panels such as 5/8 inch plywood, which provide improved stiffness while remaining relatively lightweight.

Comparing 1/2 Plywood with Other Thickness Options

1/2 Inch vs 5/8 Inch Plywood

A common comparison in roofing construction is between 1/2 inch and 5/8 inch plywood.

While both options can be used in residential projects, 5/8 inch plywood provides greater structural stiffness and reduced panel deflection. This makes it a popular choice in areas with higher snow loads or stronger wind exposure.

1/2 Inch vs 3/4 Inch Plywood

Three-quarter inch plywood is typically used in applications requiring maximum structural strength, such as flooring systems or heavy-duty construction.

Although it offers excellent stiffness, it is usually heavier and more expensive than thinner panels. For standard residential roofing, this thickness is often unnecessary.

Sustainability Considerations

Wood-based construction materials are increasingly evaluated for their environmental impact. Plywood is often considered a sustainable building material because it is produced from renewable wood resources.

When sourced from responsibly managed forests, plywood can contribute to environmentally responsible construction practices.

Certification systems such as FSC (Forest Stewardship Council) help verify that wood products originate from sustainable forestry operations.

Sustainable sourcing has become an important factor for many construction companies and developers seeking to reduce the environmental footprint of building materials.

Future Trends in Roofing Materials

The construction industry continues to evolve as new materials and technologies emerge. However, engineered wood panels such as plywood remain widely used due to their reliability and structural performance.

As residential construction continues to grow in many regions, demand for plywood panels suitable for roofing and structural applications is expected to remain strong.

Builders and contractors will continue evaluating material thickness, structural performance, and cost efficiency when selecting plywood for roofing systems.

Frequently Asked Questions

Is 1/2 inch plywood strong enough for roof sheathing?

In certain residential construction situations, 1/2 inch plywood may provide sufficient strength, especially when rafters are spaced closely and roofing materials are relatively lightweight. However, thicker panels are often preferred for improved stiffness and long-term durability.

What thickness plywood is commonly used for roofs?

Many contractors use 5/8 inch plywood for roof sheathing because it offers a good balance between strength and weight. However, thickness requirements vary depending on building codes and structural design.

Can 1/2 plywood be used for roofing in areas with heavy snow?

In regions with heavy snow loads, thicker plywood panels are usually recommended to ensure adequate structural support.

What is the difference between plywood and OSB for roof sheathing?

Both plywood and oriented strand board (OSB) are commonly used for roof sheathing. Plywood generally offers better moisture resistance and dimensional stability, while OSB is often more cost-effective.

Conclusion

Choosing the correct plywood thickness for roof sheathing is an important decision in construction. While 1/2 inch plywood can be suitable in certain residential roofing applications, its performance depends heavily on factors such as rafter spacing, roofing material weight, and local building codes.

Builders should carefully evaluate structural requirements before selecting plywood thickness to ensure long-term durability and safety.

When used in appropriate conditions, 1/2 inch plywood can provide a cost-effective and practical solution for roof sheathing while maintaining the structural integrity of the roofing system.

References

Forest Products Laboratory. (2021). Wood Handbook: Wood as an Engineering Material. USDA Forest Service.

American Plywood Association. (2022). Engineered Wood Construction Guide.

International Code Council. (2021). International Residential Code for One- and Two-Family Dwellings.
